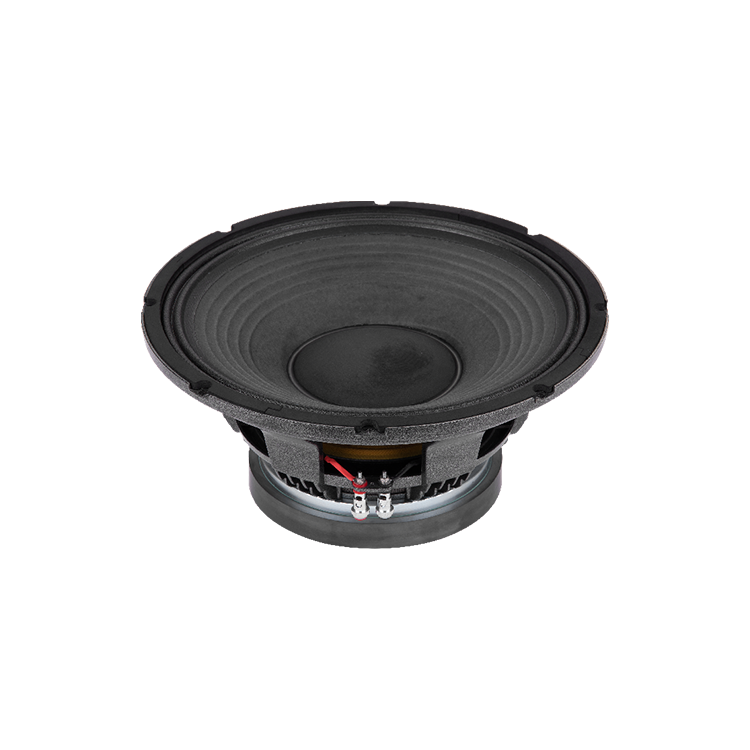

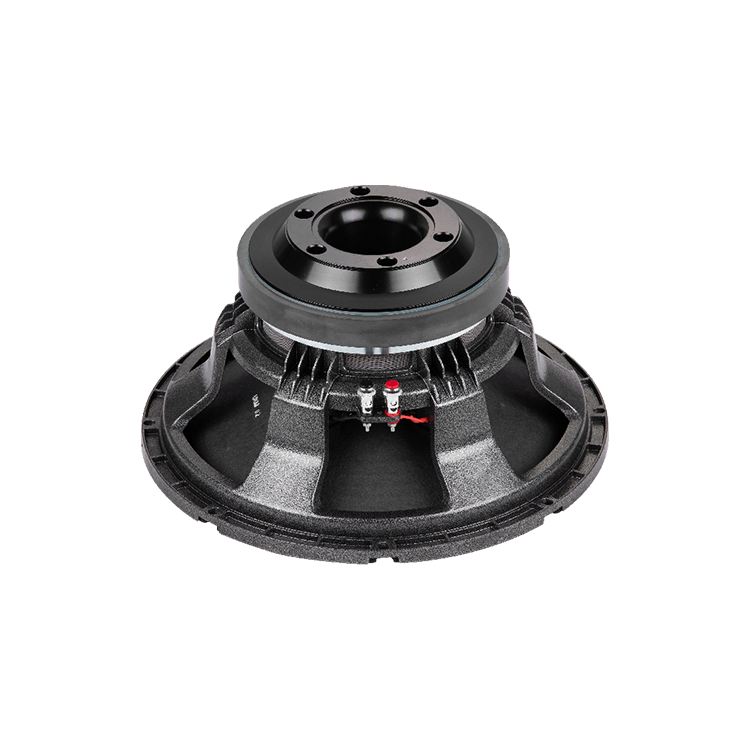

W-15-370A-8-100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 388mm | Depth： | 177mm | |
| Bolt circle diameter： | 372mm | Flange and Gasket： | 15mm | |
| Baffle cutout diameter： | 354mm | Net weight： | 11kg | |
| Shipping box (single carton box)： | 420x420x240mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter： | 15Inch | Voice coil material： | Outside 2 Layercu | |
| Nominal impedance： | 8Ω | Former material： | KSV | |
| DC resistance： | 5.6Ω | Winding depth： | 19mm | |
| Nominal power handling： | 600W | T yoke： | 23mm | |
| 1200W | Plate： | 12mm | ||
| Sensitivity (1W/1m)： | 98± 2dB | Magnet： | 220x110x25(125OZ)mm | |
| Frequency range (-10dB max)： | 55-3000Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 100mm |
THIELE & SMALL PARAMETERS
| Fo： | 55Hz | Cms： | 67.3u M/N | Qms： | 5.6 | No： | 0.0309 | |||
| Revc： | 5.6Ω | Mmd： | 108.4m Kg | Qes： | 0.37 | Xmax： | ±4mm | |||
| Sd： | 85.5m㎡ | Mms： | 122.7g | Qts： | 0.34 | |||||
| Vas： | 69.9L | Bl： | 25.3N/A | Levc： | 1.11m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
