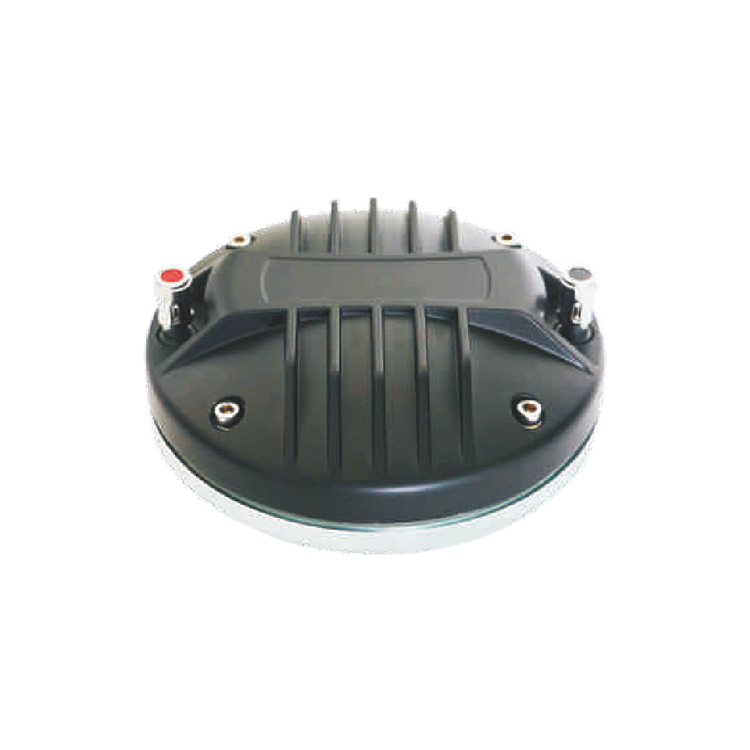

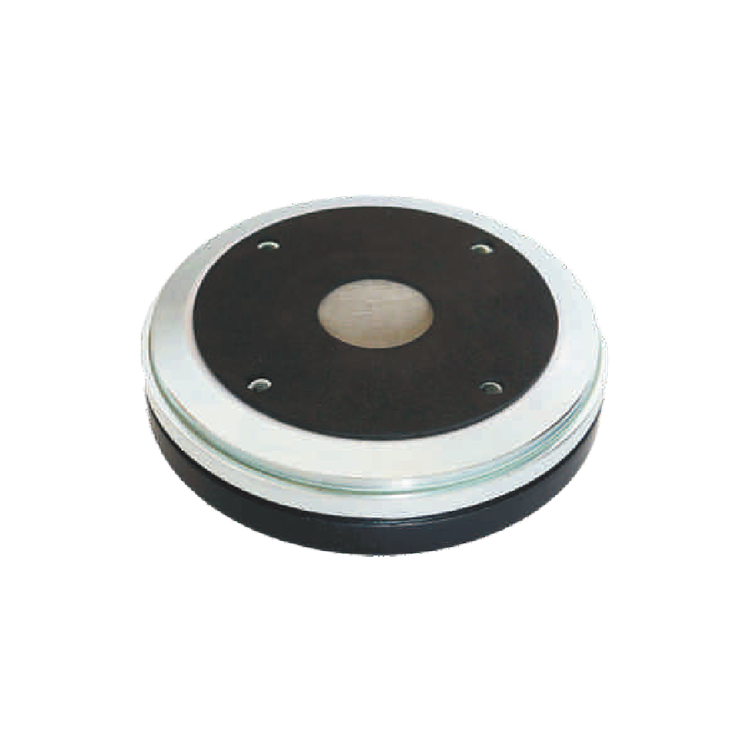

CYC-BC100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 154mm | Depth： | 38(1.5″)mm | |
| Baffle circIe diameter： | 154mm | Flange and Gasket： | Bolt-on | |
| Baffle cutout diameter： | ￠ 102*4-M6mm | Net weight： | 3.1kg | |
| Shipping box(1 PR carton box)： | mm |
ELECTRICAL SPECIFICATIONS
| Nominal impedance： | 8Ω | Voice coil material： | Outside 1 LayerCCAR | |
| DC resistance： | 6.2Ω | Former material： | katpon | |
| Nominal power handling： | 90W | Winding depth： | 3.2mm | |
| Continuous power handling： | 120W | T yoke： | 9mm | |
| Sensitivity (1W/1m)： | 108±2dB | Plate： | 9mm | |
| Frequency range (-10dB max)： | 600-20KHz | Magnet grade： | NdFeB 38H | |
| Voice coil diameter： | 99.2mm | Diaphragm Material： | Titanium |
THIELE & SMALL PARAMETERS
| Fo： | 600Hz | Cms： | u M/N | Qms： | No： | ||||
| Revc： | 6.2Ω | Mmd： | m Kg | Qes： | Xmax： | ||||
| Sd： | m M2 | Mms： | g | Qts： | |||||
| Vas： | L | Bl： | N/A | Levc： | uH |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
