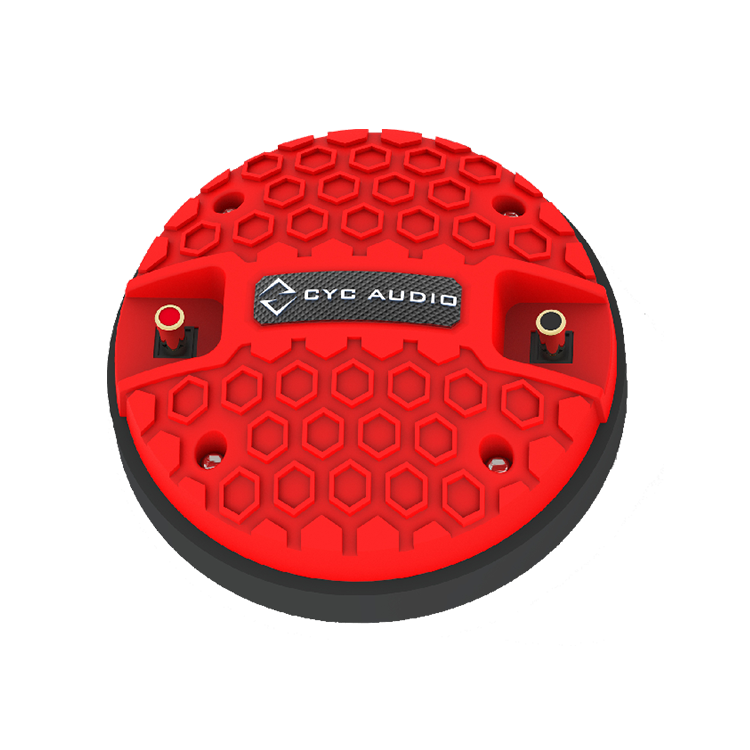

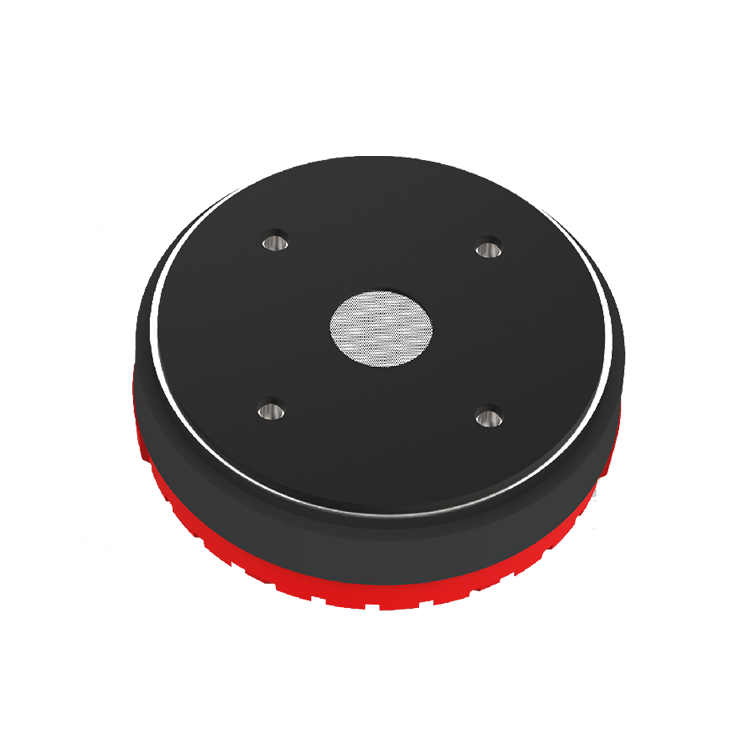

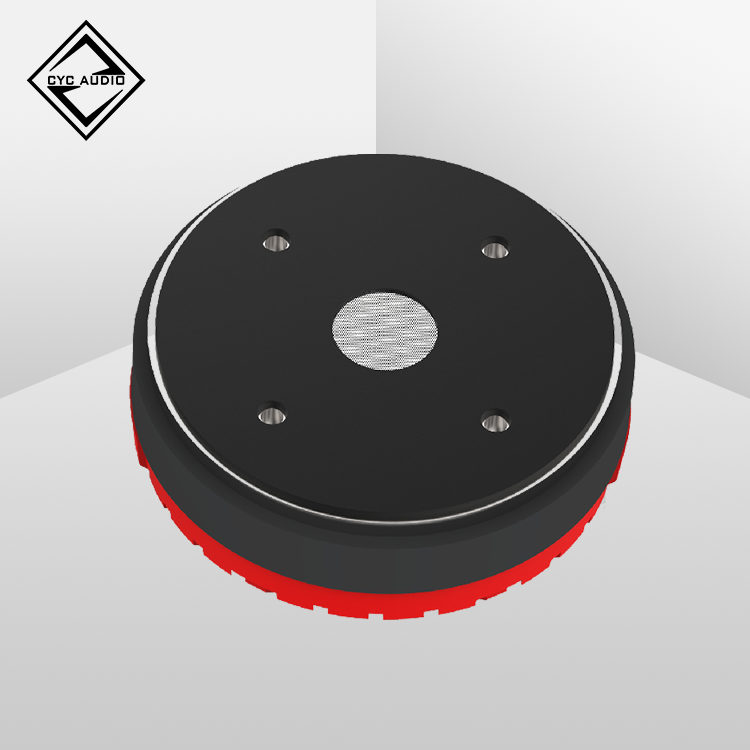

CTW-5051S

As an audio company, we always regard R&D and innovation as the core driving force. In the first year of establishment, we tried our best to introduce revolutionary audio products, leading the trend of the industry.

NO: CTW-5051S

CTW-5051S

50W Nominal Power Handling

51.6mm Voice Coil Diameter

1200-20000HZ Frequency Range

108(1W/1m) Sensitivity”

    Get A Quote

    Description

    MECHANICAL SPECIFICATIONS

    Overall diameter: Φ134mm Mounting  Type : Screw on  mm
    Baffle cutout diameter: 134mm Total depth: 78mm
    Bolt circle diameter: M34.4mm Mounting depth: 17mm
    Throat Diameter: 25.4mm Net weight: 2.63kg
    Shipping box (1 PCS carton box)  : 140X140X90mm

    ELECTRICAL SPECIFICATIONS

    Nominal impedance: Former material : katpon
    DC resistance: Winding depth : 2.2mm
    Nominal power handling : 50W T yoke: 7mm
    Continuous power handling: 70W Plate : 7mm
    Sensitivity (1W/1m)  : 108±  2dB Magnet: ∮134x∮60×17
    Frequency range (-10dB max): 1200-20K Hz Magnet grade: Strontium Ferrite Y30
    Voice coil diameter: 51.6mm Diaphragm  Material : Ti
    Voice coil material : Outside  2  Layer CCAW

    THIELE & SMALL PARAMETERS

    Fo: 1200Hz Cms: u M/N Qms: No:
    Revc: Mmd: m Kg Qes: Xmax: mm
    Sd: m M2 Mms: g Qts:
    Vas: L Bl: N/A Levc: u H


    (1) 24 hours in free air according to EIA-426B

    (2) 1 inch=25.4mm    (3)xmax=(Winding depth -Plate)/2
