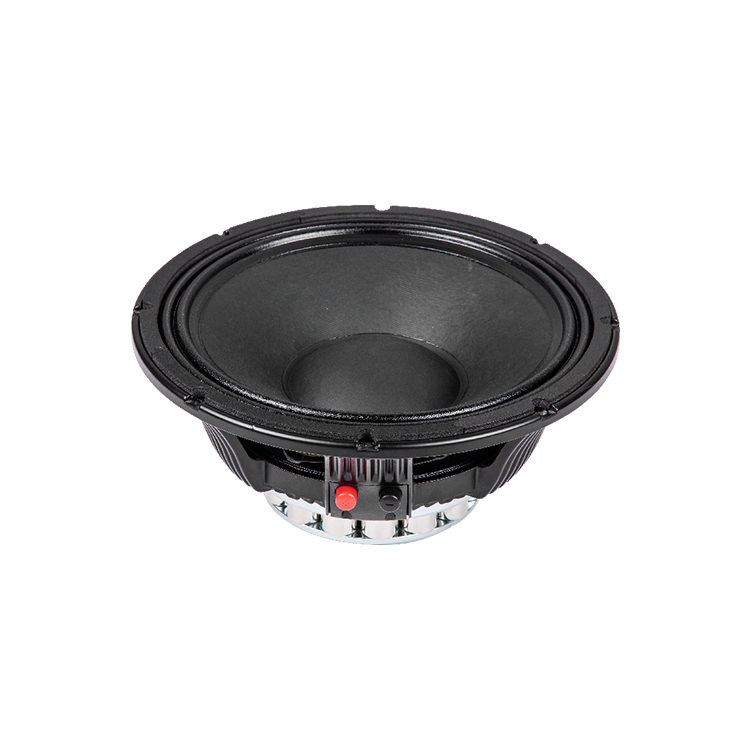

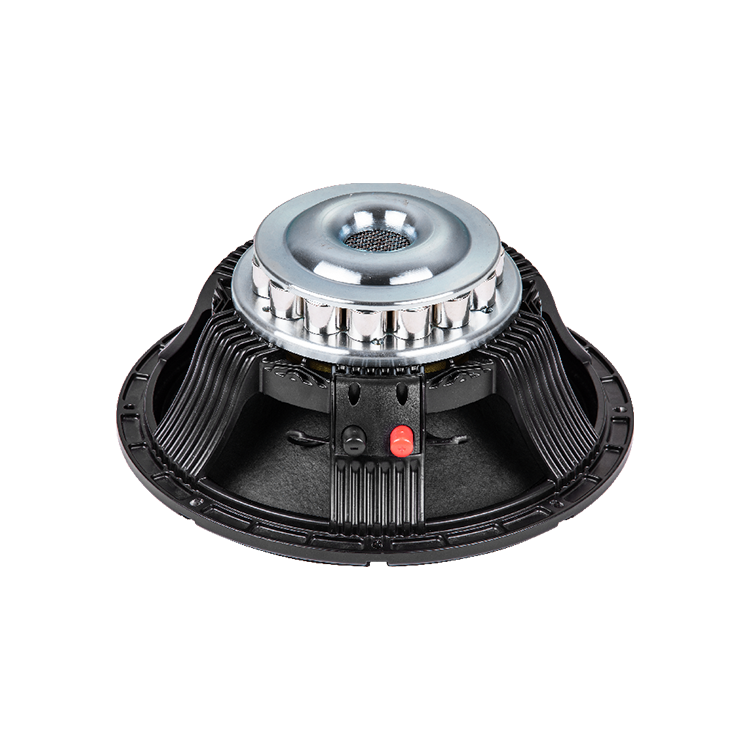

W-18-294A-8-100

As an audio company, we always regard R&D and innovation as the core driving force. In the first year of establishment, we tried our best to introduce revolutionary audio products, leading the trend of the industry.

NO: W-18-294A-8-100

W-18-294A-8-100

1000Watt Nominal Power Handing

100mm Voice coil diameter

45-1000HZ Frequency Range

97dB(1W/1m)Sensitivity

    Get A Quote

    Description

    MECHANICAL SPECIFICATIONS

    Overall diameter: 465mm Depth: 196mm
    Bolt circle diameter: 442.7mm Flange and Gasket: 18mm
    Baffle cutout diameter: 424mm Net weight: 9.9kg
    Shipping box (single carton box): 500x500x275mm

    ELECTRICAL SPECIFICATIONS

    Nominal diameter: 18Inch Voice coil material: Inise/Outside 1 Layercu
    Nominal impedance: Former material: BAF
    DC resistance: 5.1Ω Winding depth: 25mm
    Nominal power handling: 1000W T yoke: 16mm
    2000W Plate: 13mm
    Sensitivity (1W/1m): 97±  2dB Magnet: NDFEB
    Frequency range (-10dB max): 45-2000Hz Basket: Cast aluminium
    Voice coil diameter: 100mm

    THIELE & SMALL PARAMETERS

    Fo: 47Hz Cms: 47.77u M/N Qms: 9.3 No: 0.0202
    Revc: 5.1Ω Mmd: 214.66m Kg Qes: 0.52 Xmax: ±6mm
    Sd: 124.41m㎡ Mms: 239.88g Qts: 0.49
    Vas: 105.1L Bl: 26.3N/A Levc: 935.175m H


    (1) 24 hours in free air according to EIA-426B

    (2) 1 inch=25.4mm    (3)Xmax=(Winding depth -Plate)/2
