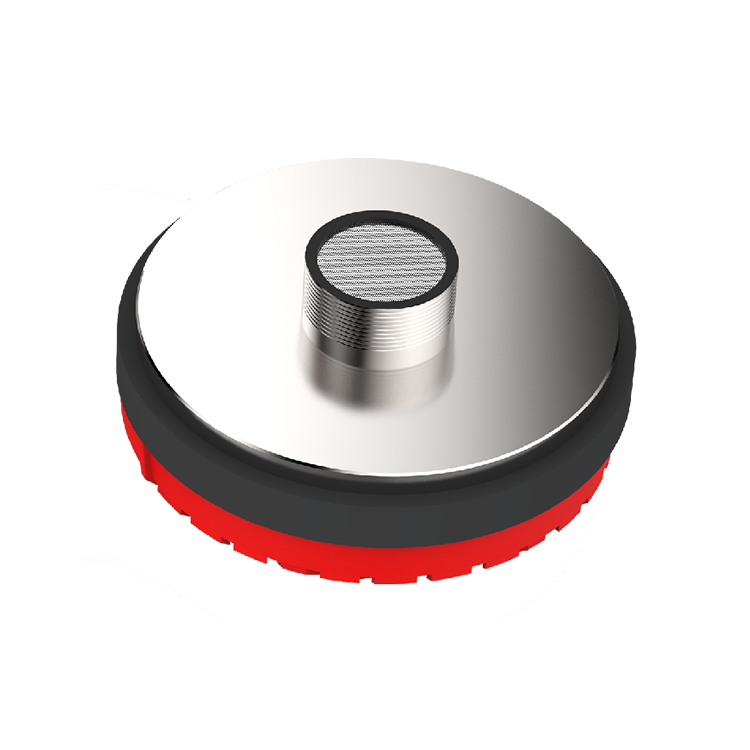

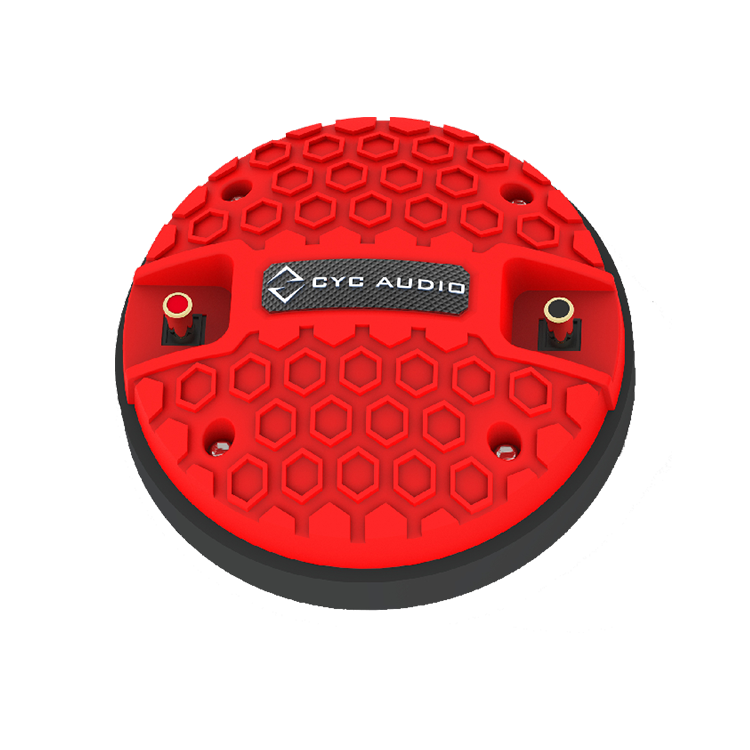

CTW-3351S
Description
MECHANICAL SPECIFICATIONS
| Overall diameter: | Φ134 mm | Mounting Type: | Screw on mm | |
| Baffle cutout diameter: | Φ134 mm | Total depth: | 78 mm | |
| Bolt circle diameter: | M34.4 mm | Mounting depth: | 17 mm | |
| Throat Diameter : | 25.4 mm | Net weight: | 2.63 mm | |
| Shipping box (1 PCS carton box): | 140x140x90 mm |
ELECTRICAL SPECIFICATIONS
| Nominal impedance: | 8Ω | Former material : | katpon | |
| DC resistance: | 7Ω | Winding depth : | 2.2mm | |
| Nominal power handling : | 50W | T yoke: | 7mm | |
| Continuous power handling: | 70W | Plate : | 7mm | |
| Sensitivity (1W/1m) : | 108± 2dB | Magnet: | ∮134*∮60*17mm | |
| Frequency range (-10dB max): | 1200-20KHz | Magnet grade: | Strontium Ferrite Y30 | |
| Voice coil diameter: | 51.6mm | Diaphragm Material : | Ti | |
| Voice coil material : | Outside 2 Layer CCAW |
THIELE & SMALL PARAMETERS
| Fo: | 1200Hz | Cms: | u M/N | Qms: | No: | |||||
| Revc: | 7Ω | Mmd: | m Kg | Qes: | Xmax: | mm | ||||
| Sd: | m M2 | Mms: | g | Qts: | ||||||
| Vas: | L | Bl: | N/A | Levc: | u H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)xmax=(Winding depth -Plate)/2
