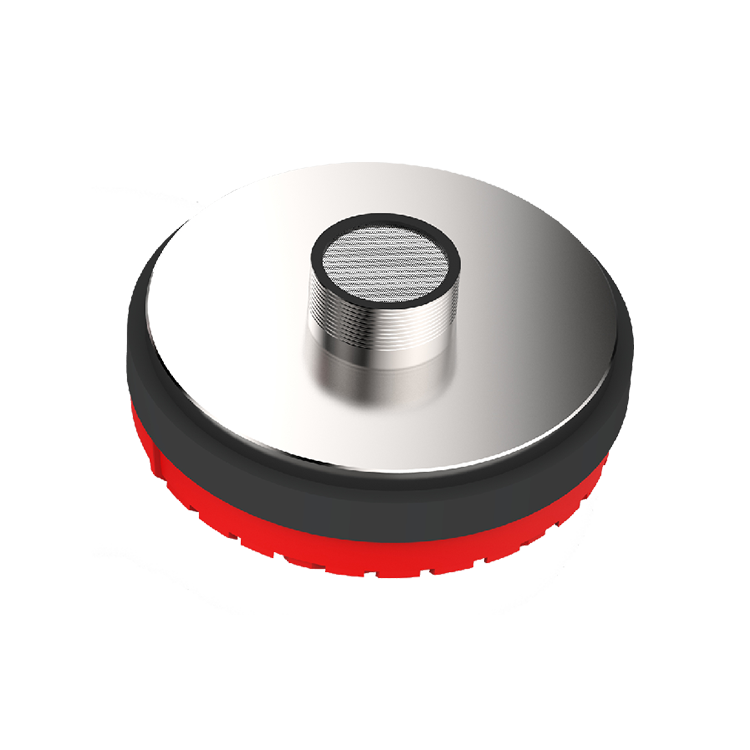

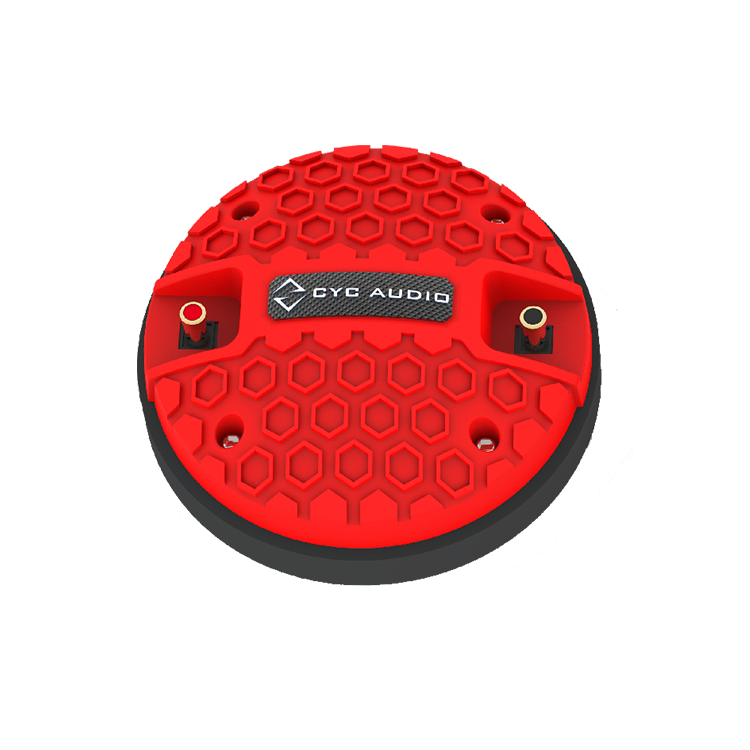

CTW-4351S
Description
MECHANICAL SPECIFICATIONS
Overall diameter: | Φ115mm | Mounting Type : | Screw on mm | |
Baffle cutout diameter: | 115mm | Total depth: | 70mm | |
Bolt circle diameter: | 34.4mm | Mounting depth: | 17mm | |
Throat Diameter : | 25mm | Net weight: | 1.48kg | |
Shipping box (1 PCS carton box) : | 130X130X88mm |
ELECTRICAL SPECIFICATIONS
Nominal impedance: | 8Ω | Former material : | katpon | |
DC resistance: | 6.2Ω | Winding depth : | 2mm | |
Nominal power handling : | 40W | T yoke: | 5mm | |
Continuous power handling: | 50W | Plate : | 5mm | |
Sensitivity (1W/1m) : | 106± 2dB | Magnet: | ∮115x∮50×15(23.3oZ) | |
Frequency range (-10dB max): | 1500-20000Hz | Magnet grade: | Strontium Ferrite Y30 | |
Voice coil diameter: | 44.4mm | Diaphragm Material : | Ti | |
Voice coil material : | Outside 2 Layer CCAW |
THIELE & SMALL PARAMETERS
Fo: | 1500Hz | Cms: | u M/N | Qms: | No: | |||||
Revc: | 6Ω | Mmd: | m Kg | Qes: | Xmax: | mm | ||||
Sd: | m M2 | Mms: | g | Qts: | ||||||
Vas: | L | Bl: | N/A | Levc: | u H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)xmax=(Winding depth -Plate)/2
