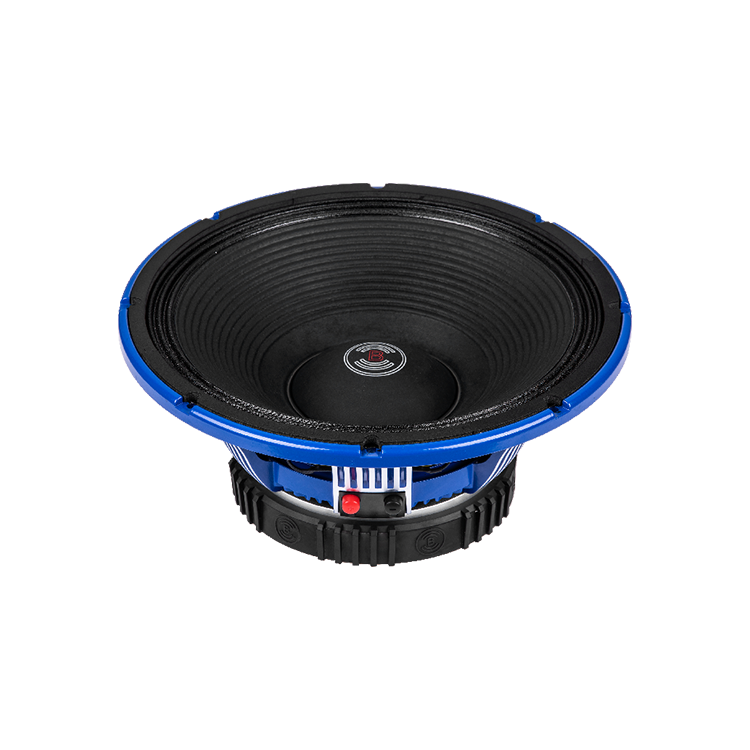

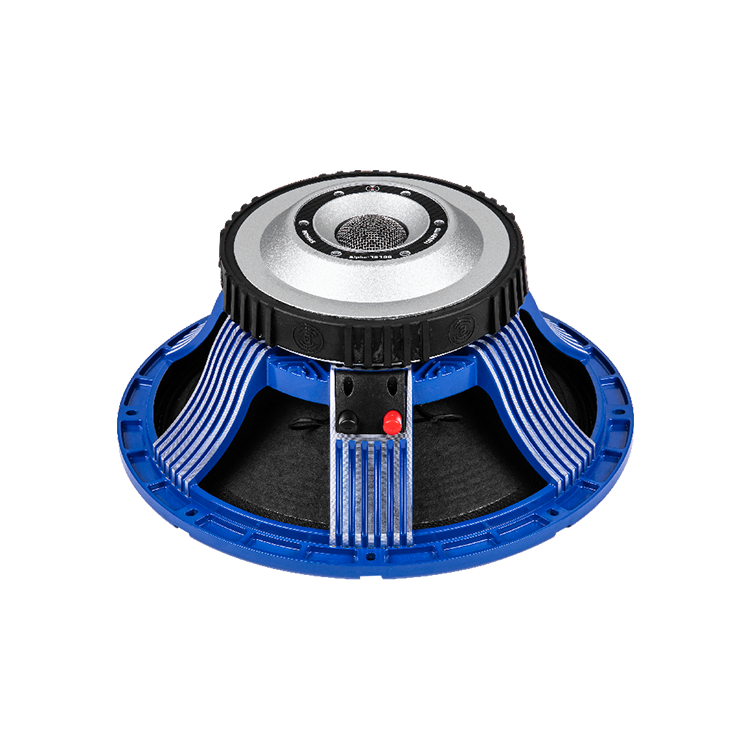

W-15-465A-8-100

As an audio company, we always regard R&D and innovation as the core driving force. In the first year of establishment, we tried our best to introduce revolutionary audio products, leading the trend of the industry.

NO: W-15-465A-8-100

W-15-465A-8-100

1000Watt Nominal Power Handing

100mm Voice coil diameter

45-2000HZ Frequency Range

97dB(1W/1m)Sensitivity

    Get A Quote

    Description

    MECHANICAL SPECIFICATIONS

    Overall diameter: 401mm Depth: 178mm
    Bolt circle diameter: 378mm Flange and Gasket: 18mm
    Baffle cutout diameter: 357mm Net weight: 12.8kg
    Shipping box (single carton box): 420x420x210mm

    ELECTRICAL SPECIFICATIONS

    Nominal diameter : 15Inch Voice coil material: Inside 1 layer/Outside 3 layer  CCAW
    Nominal impedance: Former material: BAF
    DC resistance: 5.6Ω Winding depth : 28mm
    Nominal power handling : 1000W T yoke: 26mm
    Continuous power handling: 2000W Plate : 12mm
    Sensitivity (1W/1m)  : 97±  2dB Magnet: 125oz
    Frequency range (-10dB max): 45-2000Hz Basket: Cast aluminium
    Voice coil diameter: 100mm

    THIELE & SMALL PARAMETERS

    Fo: 48Hz Cms: 79.28u M/N Qms: 9.02 No: 2.44%
    Revc: 5.6Ω Mmd: 123.57m Kg Qes: 0.364 Xmax: ±8mm
    Sd: 85.53m㎡ Mms: 137.96g Qts: 0.35
    Vas: 82.35L Bl: 25.33N/A Levc: 2269m H


    (1) 24 hours in free air according to EIA-426B

    (2) 1 inch=25.4mm    (3)Xmax=(Winding depth -Plate)/2
