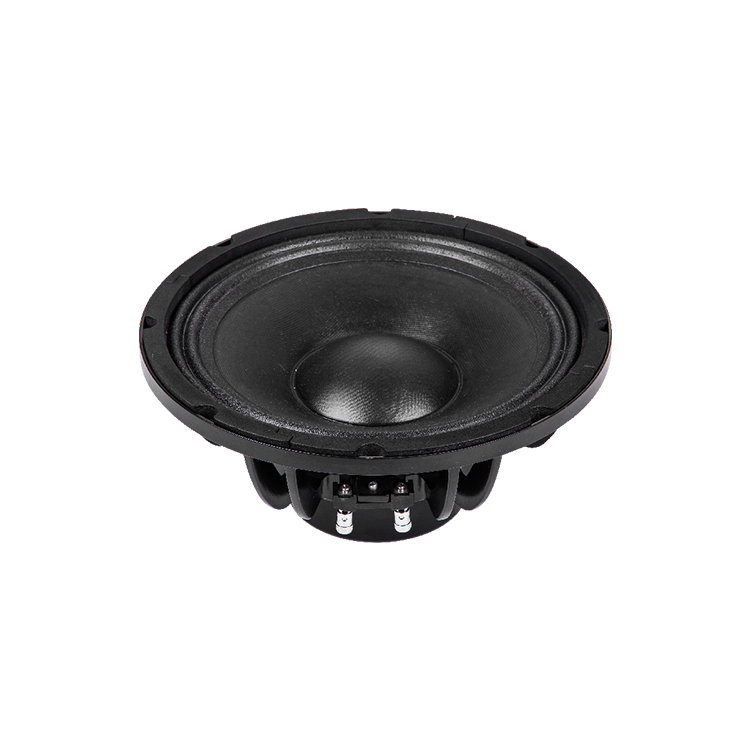

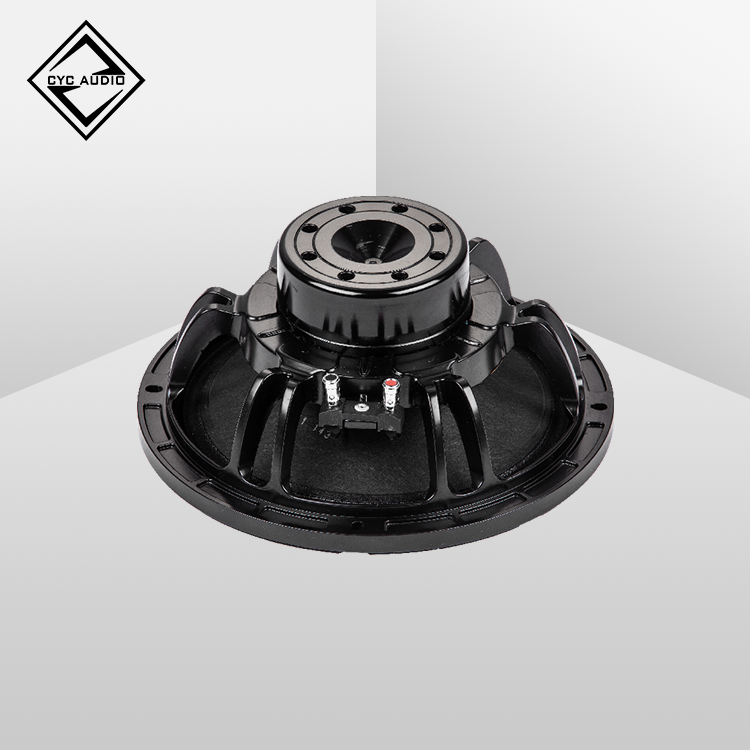

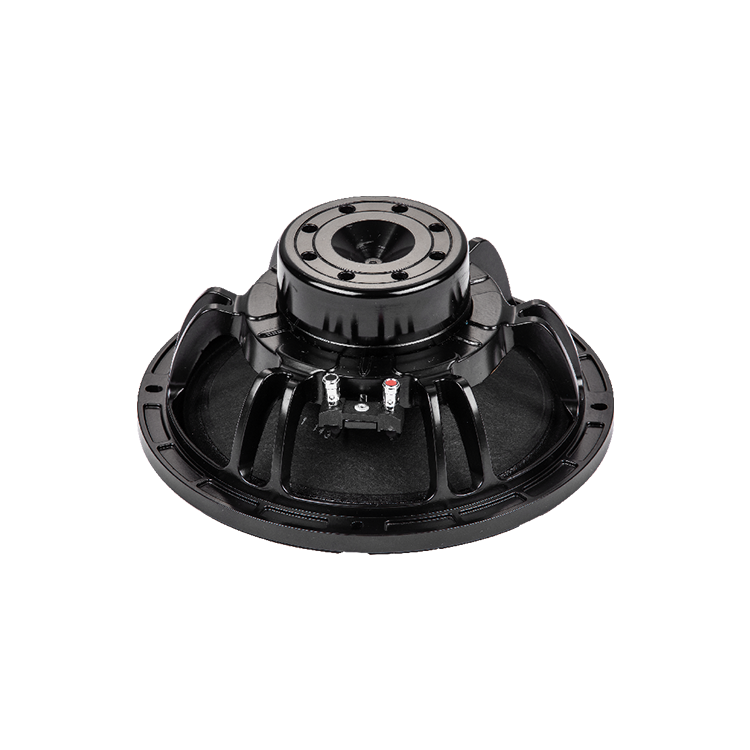

W-10-079A-8-65

As an audio company, we always regard R&D and innovation as the core driving force. In the first year of establishment, we tried our best to introduce revolutionary audio products, leading the trend of the industry.

NO: W-10-079A-8-65

W-10-079A-8-65

300Watt Nominal Power Handing

65.5mm Voice coil diameter

55-2500HZ Frequency Range

96dB(1W/1m)Sensitivity

    Get A Quote

    Description

    MECHANICAL SPECIFICATIONS

    Overall diameter: 260mm Depth: 102mm
    Bolt circle diameter: 246mm Flange and Gasket: 14mm
    Baffle cutout diameter: 232mm Net weight: 3kg
    Shipping box (single carton box): 280x280x130mm

    ELECTRICAL SPECIFICATIONS

    Nominal diameter: 10Inch Voice coil material: Inside/outside  cu
    Nominal impedance: Former material: TIL
    DC resistance: 5.6Ω Winding depth : 14mm
    Nominal power handling: 300W T yoke: 10mm
    600W Plate : 10mm
    Sensitivity (1W/1m): 96± 2dB Magnet: NDFEB
    Frequency range (-10dB max): 55-2500Hz Basket: Aluminium
    Voice coil diameter: 65.5mm

    THIELE & SMALL PARAMETERS

    Fo: 52.7Hz Cms: 321.29u M/N Qms: 2.75 No: 0.0218
    Revc: 5.6Ω Mmd: 25.68m Kg Qes: 0.34 Xmax: ±2mm
    Sd: 34.64m㎡ Mms: 29.39g Qts: 0.3
    Vas: 54.73L Bl: 12.6N/A Levc: 549.17m H


    (1) 24 hours in free air according to EIA-426B

    (2) 1 inch=25.4mm    (3)Xmax=(Winding depth -Plate)/2
