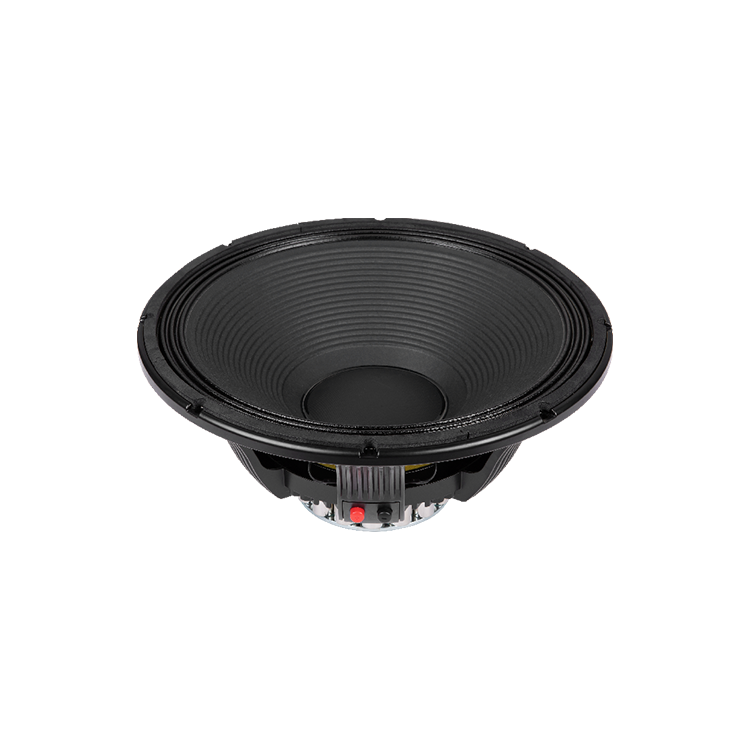

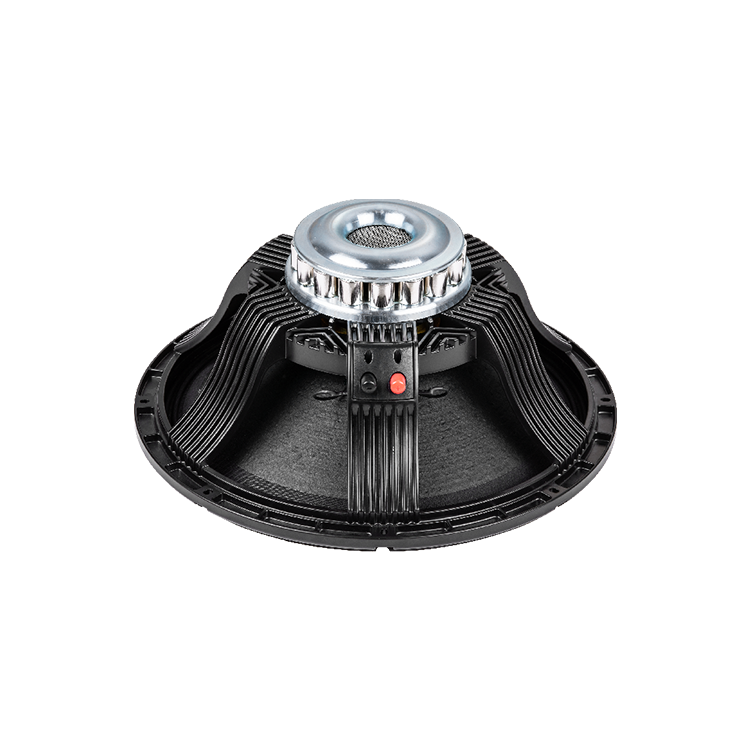

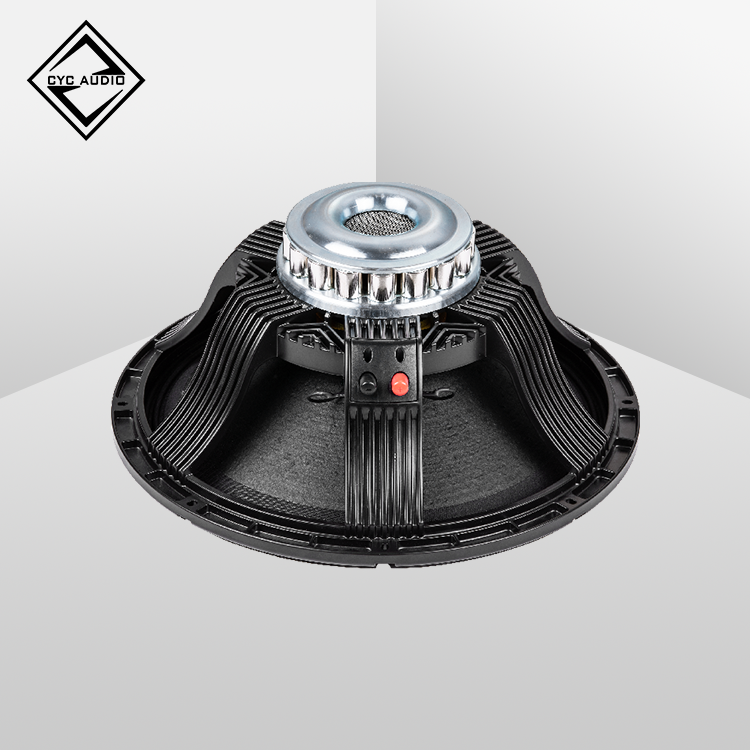

W-18-303A-8-114
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 465mm | Depth： | 188mm | |
| Bolt circle diameter： | 442.7mm | Flange and Gasket： | 20mm | |
| Baffle cutout diameter： | 424mm | Net weight： | 8.8kg | |
| Shipping box (single carton box)： | 510x510x275mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter： | 18Inch | Voice coil material： | Inise/Outside 1 Layercu | |
| Nominal impedance： | 8Ω | Former material： | BAF | |
| DC resistance： | 5.2Ω | Winding depth： | 25mm | |
| Nominal power handling： | 1200W | T yoke： | 16mm | |
| 2400W | Plate ： | 12mm | ||
| Sensitivity (1W/1m)： | 96.6± 2dB | Magnet： | NDFEB | |
| Frequency range (-10dB max)： | 45-1600Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 114.5mm |
THIELE & SMALL PARAMETERS
| Fo： | 50Hz | Cms： | 53.92u M/N | Qms： | 6.46 | No： | 0.0292 | |||
| Revc： | 5.2Ω | Mmd： | 161.9m Kg | Qes： | 0.48 | Xmax： | ±6.5mm | |||
| Sd： | 122.54m㎡ | Mms： | 186.57g | Qts： | 0.44 | |||||
| Vas： | 114.98L | Bl： | 25.01N/A | Levc： | 1.131m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
