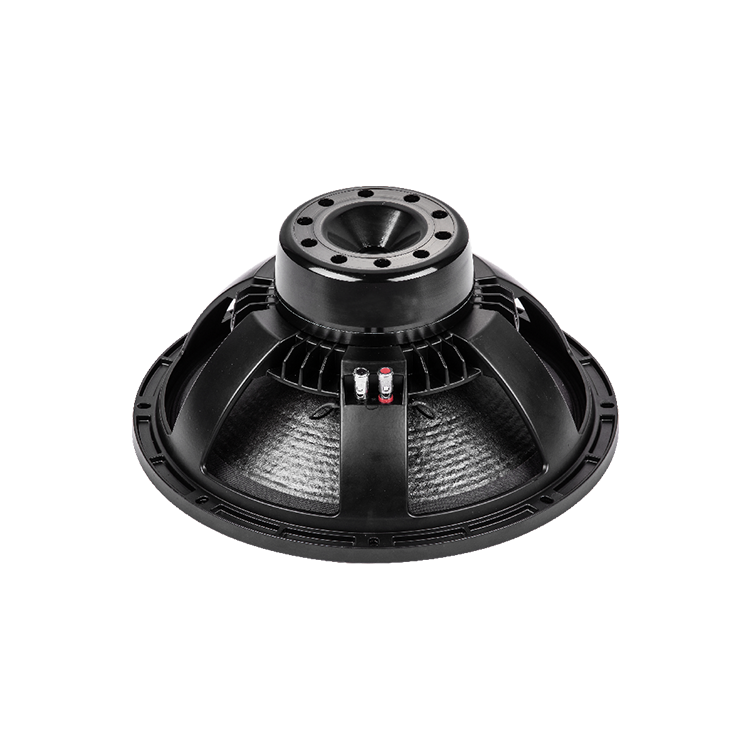

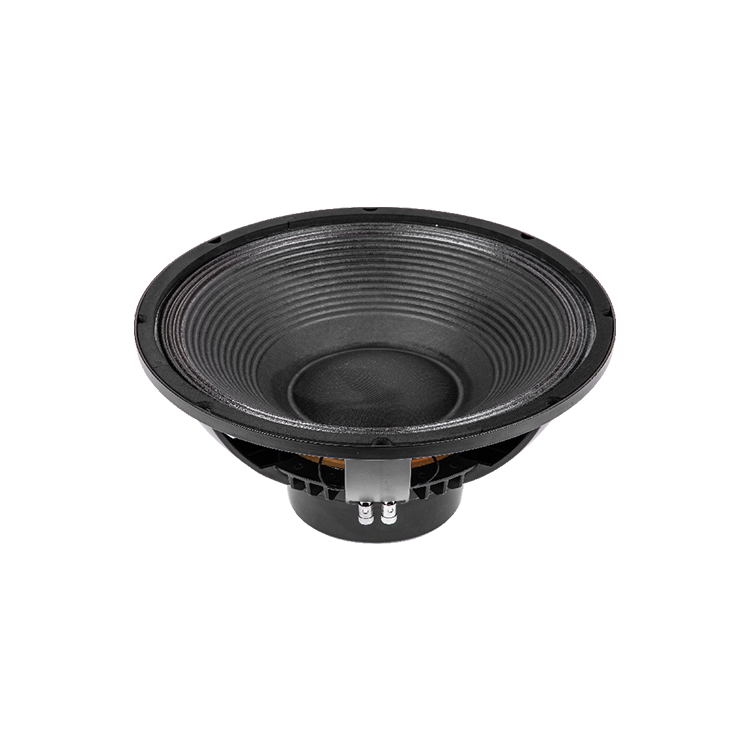

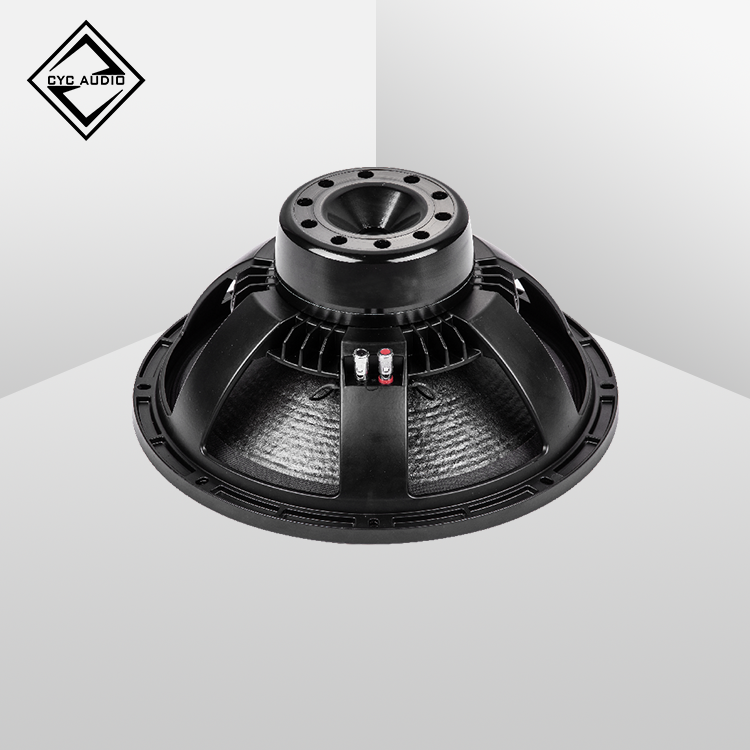

W-18-243A-8-100

As an audio company, we always regard R&D and innovation as the core driving force. In the first year of establishment, we tried our best to introduce revolutionary audio products, leading the trend of the industry.

NO: W-18-243A-8-100

W-18-243A-8-100

1000Watt Nominal Power Handing

100mm Voice coil diameter

43-2000HZ Frequency Range

98dB(1W/1m)Sensitivity

    Get A Quote

    Description

    MECHANICAL SPECIFICATIONS

    Overall diameter: 460mm Depth: 198mm
    Bolt circle diameter: 440mm Flange and Gasket: 17mm
    Baffle cutout diameter: 422mm Net weight: 8.4kg
    Shipping box (single carton box): 500x5000x230mm

    ELECTRICAL SPECIFICATIONS

    Nominal diameter: 18Inch Voice coil material: Inise/Outside 2 Layercu
    Nominal impedance: Former material : BAF
    DC resistance: 5.2Ω Winding depth: 25mm
    Nominal power handling: 1000W T yoke: 15mm
    2000W Plate: 12mm
    Sensitivity (1W/1m) : 98±  2dB Magnet: NDFEB
    Frequency range (-10dB max): 43-2000Hz Basket: Cast aluminium
    Voice coil diameter: 100mm

    THIELE & SMALL PARAMETERS

    Fo: 43Hz Cms: 72.5u M/N Qms: 6.65 No: 0.0207
    Revc: 5.2Ω Mmd: 158.21m Kg Qes: 0.6 Xmax: ±6.5mm
    Sd: 122.54m M2 Mms: 182.87g Qts: 0.55
    Vas: 154.7L Bl: 20.7N/A Levc: 998.43u H


    (1) 24 hours in free air according to EIA-426B

    (2) 1 inch=25.4mm    (3)Xmax=(Winding depth -Plate)/2
