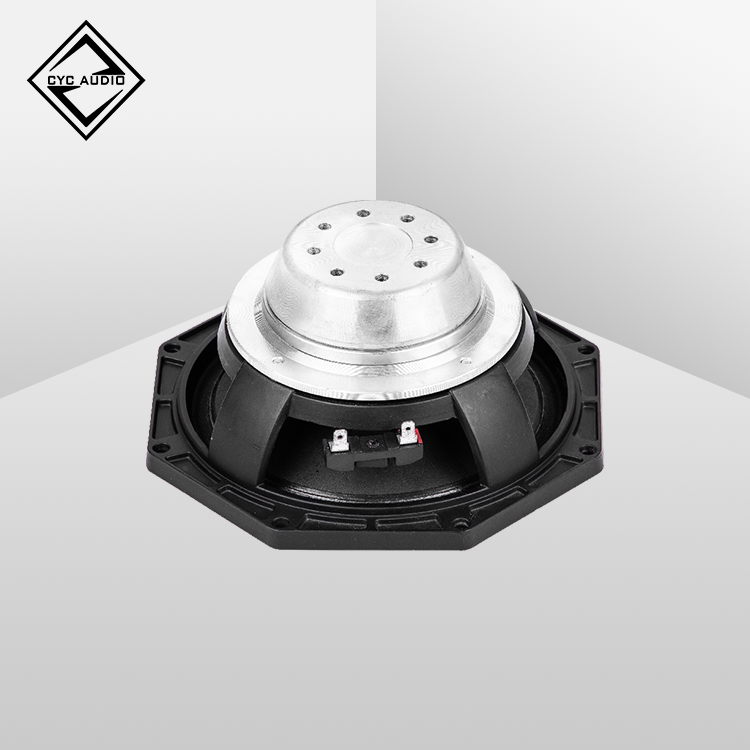

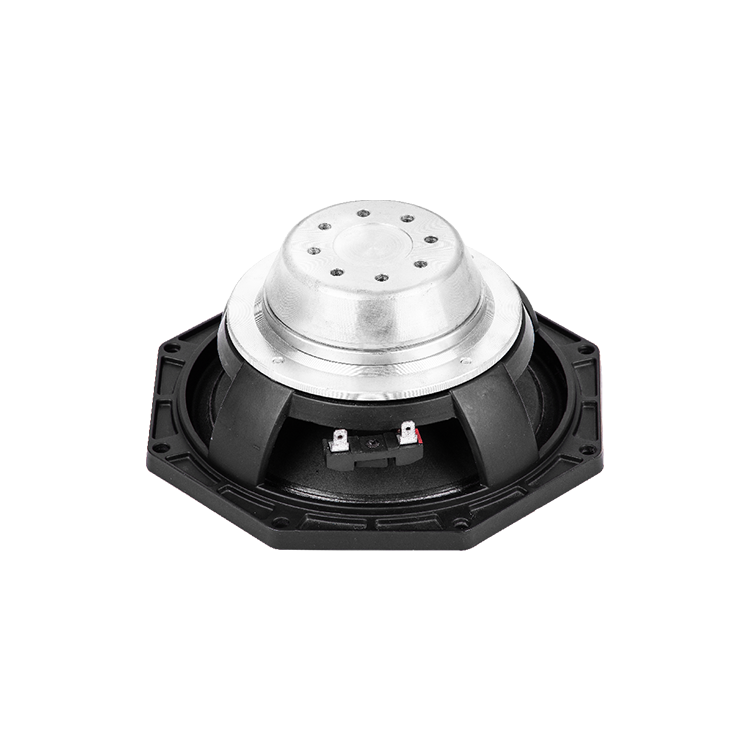

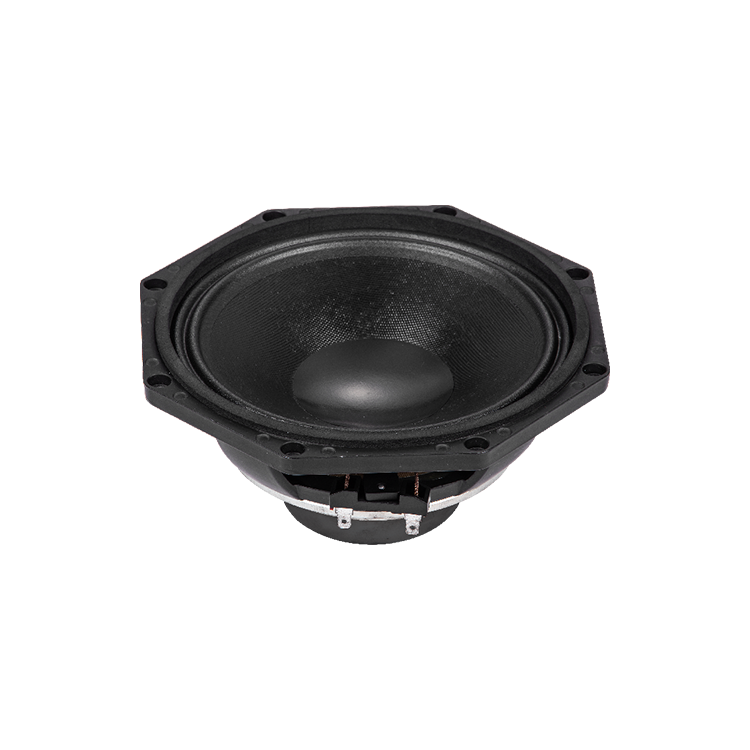

W-08-036A-16-50
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 236X206mm | Depth： | 87mm | |
| Bolt circle diameter： | 216mm | Flange and Gasket： | 11mm | |
| Baffle cutout diameter： | 186mm | Net weight： | 2.5kg | |
| Shipping box (single carton box)： | 220x220x120mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter： | 8Inch | Voice coil material ： | Outside 2 LayerCCAW | |
| Nominal impedance： | 16Ω | Former material ： | katpon | |
| DC resistance： | 16.2Ω | Winding depth ： | 14mm | |
| Nominal power handling ： | 120W | T yoke： | 10mm | |
| 240W | Plate ： | 8mm | ||
| Sensitivity (1W/1m) ： | 94± 2dB | Magnet： | NDFEB N38H | |
| Frequency range (-10dB max)： | 90-60000Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 50.5mm |
THIELE & SMALL PARAMETERS
| Fo： | 90.9Hz | Cms： | 170.65u M/N | Qms： | 3.099 | No： | 0.0166 | |||
| Revc： | 16.5Ω | Mmd： | 16.14m Kg | Qes： | 0.487 | Xmax： | ±3mm | |||
| Sd： | 21.38m㎡ | Mms： | 17.95g | Qts： | 0.421 | |||||
| Vas： | 11.08L | Bl： | 18.64N/A | Levc： | 667.79m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
