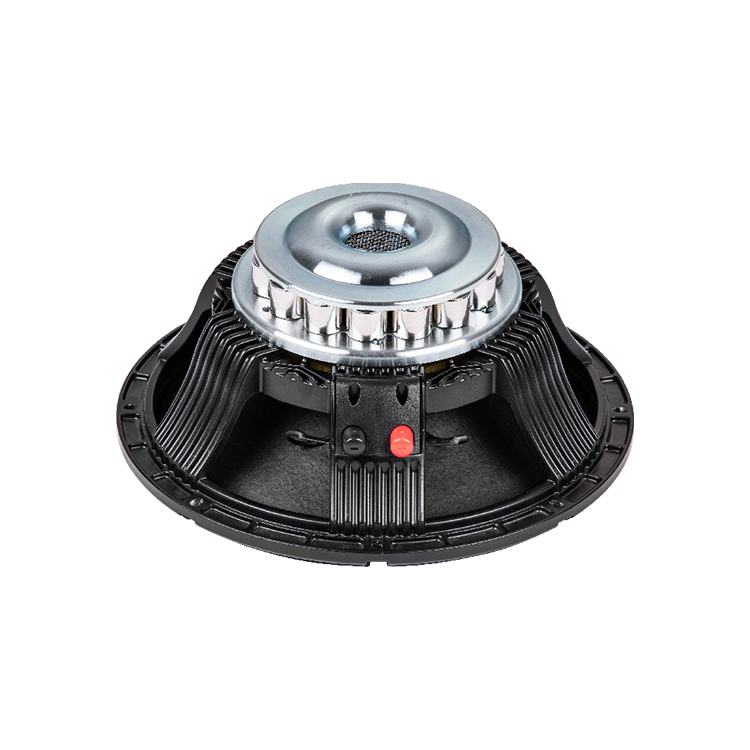

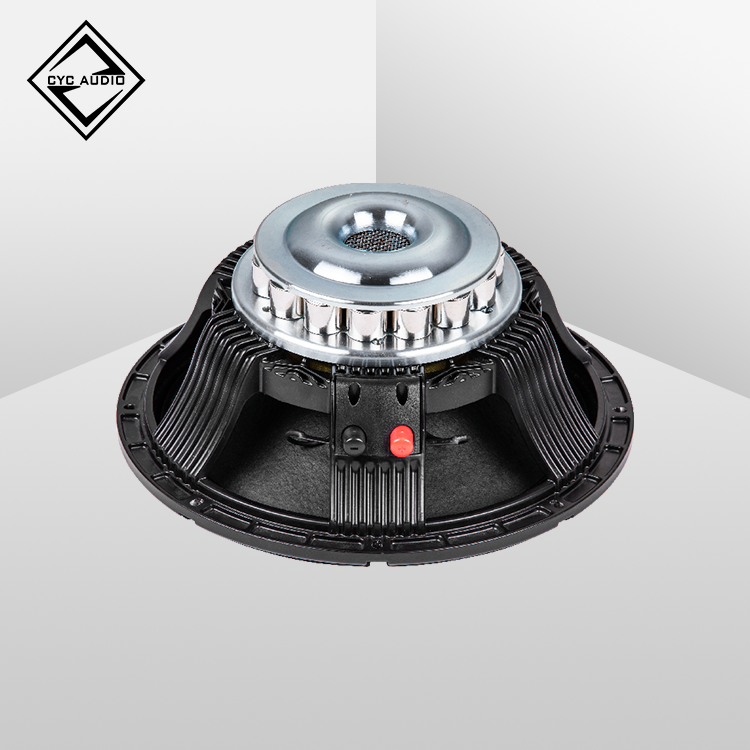

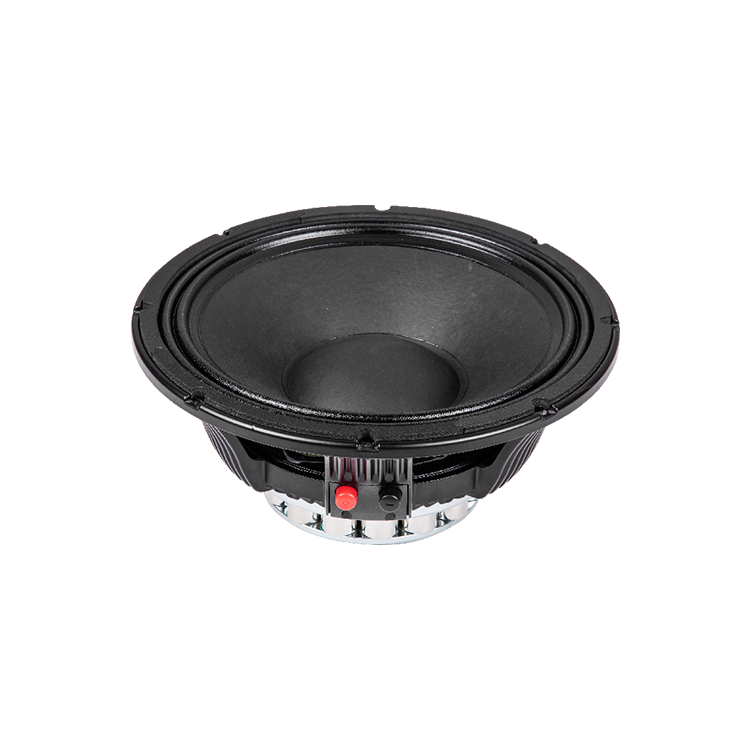

W-15-518A-8-86
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 400.5mm | Depth： | 156mm | |
| Bolt circle diameter： | 378mm | Flange and Gasket： | 18mm | |
| Baffle cutout diameter： | 360mm | Net weight： | 6.8kg | |
| Shipping box (single carton box)： | 430x430x255mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter： | 15Inch | Voice coil material： | Inside/Outside 1 layercu | |
| Nominal impedance： | 8Ω | Former material： | BAF | |
| DC resistance： | 5.3Ω | Winding depth： | 15mm | |
| Nominal power handling： | 400W | T yoke： | 15.5mm | |
| 800W | Plate ： | 10mm | ||
| Sensitivity (1W/1m)： | 98± 2dB | Magnet： | NDFEB | |
| Frequency range (-10dB max)： | 48-3000Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 86.5mm |
THIELE & SMALL PARAMETERS
| Fo： | 48Hz | Cms： | 112.01u M/N | Qms： | 9.51 | No： | 0.0373 | |||
| Revc： | 5.3Ω | Mmd： | 80.98m Kg | Qes： | 0.36 | Xmax： | ±3mm | |||
| Sd： | 88.14m㎡ | Mms： | 96.03g | Qts： | 0.33 | |||||
| Vas： | 123.56L | Bl： | 20.6N/A | Levc： | 527.27m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
