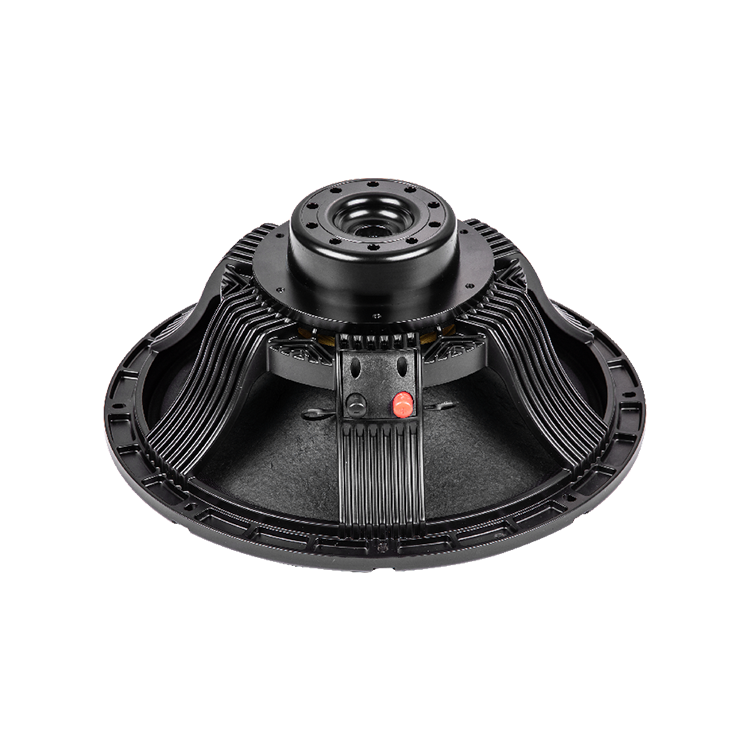

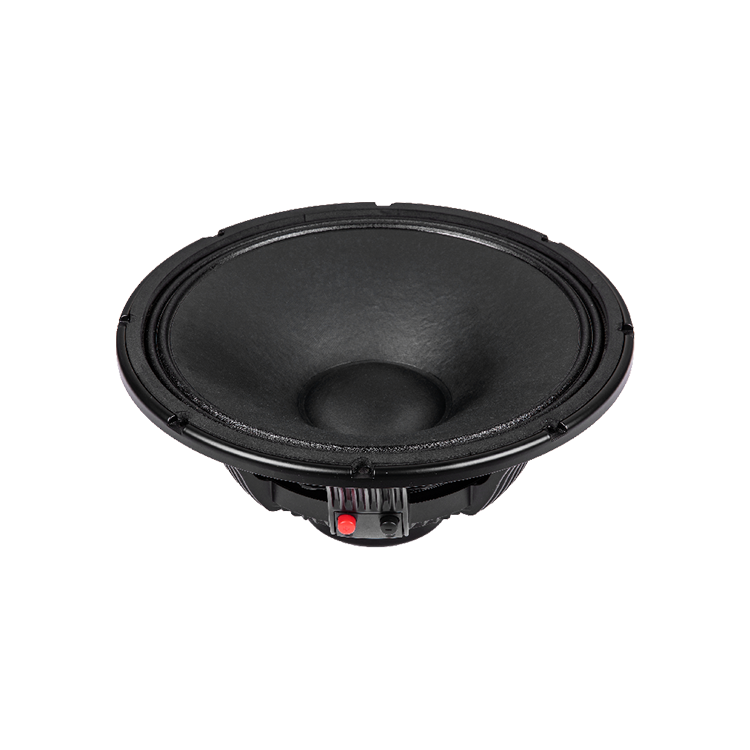

W-15-503A-8-86

As an audio company, we always regard R&D and innovation as the core driving force. In the first year of establishment, we tried our best to introduce revolutionary audio products, leading the trend of the industry.

NO: W-15-503A-8-86

W-15-503A-8-86

400Watt Nominal Power Handing

86.5mm Voice coil diameter

40-3000HZ Frequency Range

98dB(1W/1m)Sensitivity

    Get A Quote

    Description

    MECHANICAL SPECIFICATIONS

    Overall diameter: 400.5mm Depth: 159mm
    Bolt circle diameter: 378mm Flange and Gasket: 16mm
    Baffle cutout diameter: 360mm Net weight: 6.5kg
    Shipping box (single carton box): 430x430x255mm

    ELECTRICAL SPECIFICATIONS

    Nominal diameter : 15Inch Voice coil material: Inside/Outside 1 layercu
    Nominal impedance: Former material: BAF
    DC resistance: 5.3Ω Winding depth: 15mm
    Nominal power handling: 400W T yoke: 12mm
    800W Plate: 10mm
    Sensitivity (1W/1m): 98±  2dB Magnet: NDFEB
    Frequency range (-10dB max): 40-3000Hz Basket: Cast aluminium
    Voice coil diameter: 86.5mm

    THIELE & SMALL PARAMETERS



    Fo: 40Hz Cms: 172.3u M/N Qms: 9.51 No: 0.021
    Revc: 5.3Ω Mmd: 78.24m Kg Qes: 0.55 Xmax: ±3mm
    Sd: 89.19m㎡ Mms: 93.55g Qts: 0.52
    Vas: 194.66L Bl: 15.8N/A Levc: 593.106m H




    (1) 24 hours in free air according to EIA-426B

    (2) 1 inch=25.4mm    (3)Xmax=(Winding depth -Plate)/2
