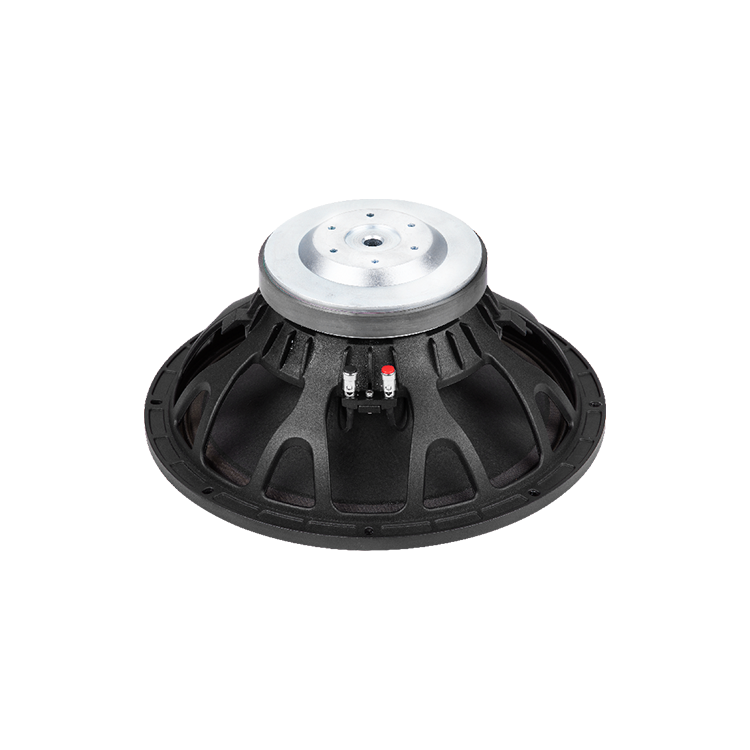

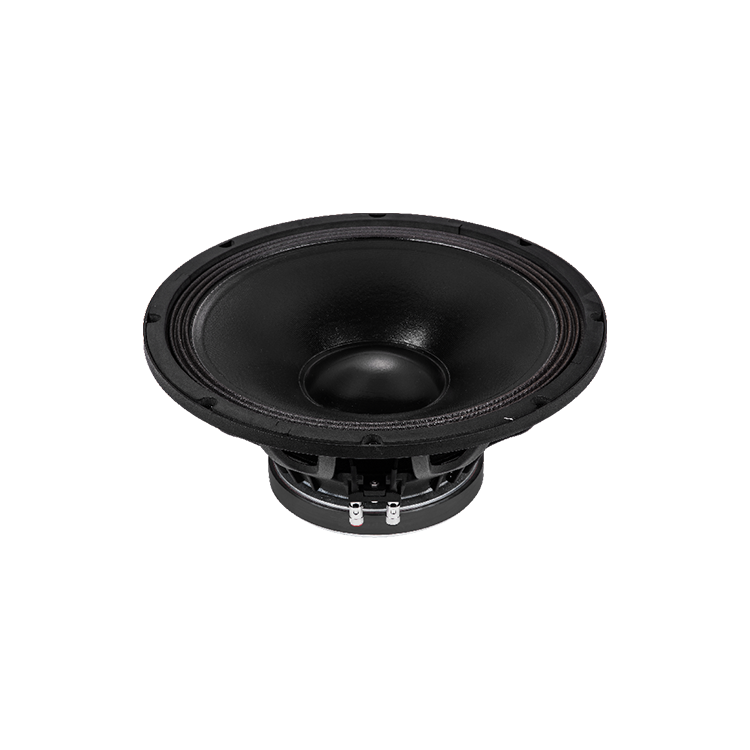

W-15-440A-8-75

As an audio company, we always regard R&D and innovation as the core driving force. In the first year of establishment, we tried our best to introduce revolutionary audio products, leading the trend of the industry.

NO: W-15-440A-8-75

W-15-440A-8-75

400Watt Nominal Power Handing

75.5mm Voice coil diameter

42-2000HZ Frequency Range

97dB(1W/1m)Sensitivity

    Get A Quote

    Description

    MECHANICAL SPECIFICATIONS



    Overall diameter: 394mm Depth: 167mm
    Bolt circle diameter: 373mm Flange and Gasket: 12mm
    Baffle cutout diameter: 353mm Net weight: 8.2kg
    Shipping box (single carton box): 430x430x250mm




    ELECTRICAL SPECIFICATIONS



    Nominal diameter : 15Inch Voice coil material: Inside/Outside 1 Layercu
    Nominal impedance: Former material: TIL
    DC resistance: 5.6Ω Winding depth: 23mm
    Nominal power handling: 400W T yoke: 17mm
    800W Plate: 10mm
    Sensitivity (1W/1m): 97± 2dB Magnet: 190x85x20(80OZ)mm
    Frequency range (-10dB max): 42-2000Hz Basket: Cast aluminium
    Voice coil diameter: 75.5mm




    THIELE & SMALL PARAMETERS

    Fo: 43Hz Cms: 107.82u M/N Qms: 8.83 No: 0.0188
    Revc: 5.5Ω Mmd: 107.55m Kg Qes: 0.49 Xmax: ±6mm
    Sd: 86.57m㎡ Mms: 112.2g Qts: 0.47
    Vas: 114.74L Bl: 19.31N/A Levc: 834.328m H


    (1) 24 hours in free air according to EIA-426B

    (2) 1 inch=25.4mm    (3)Xmax=(Winding depth -Plate)/2
