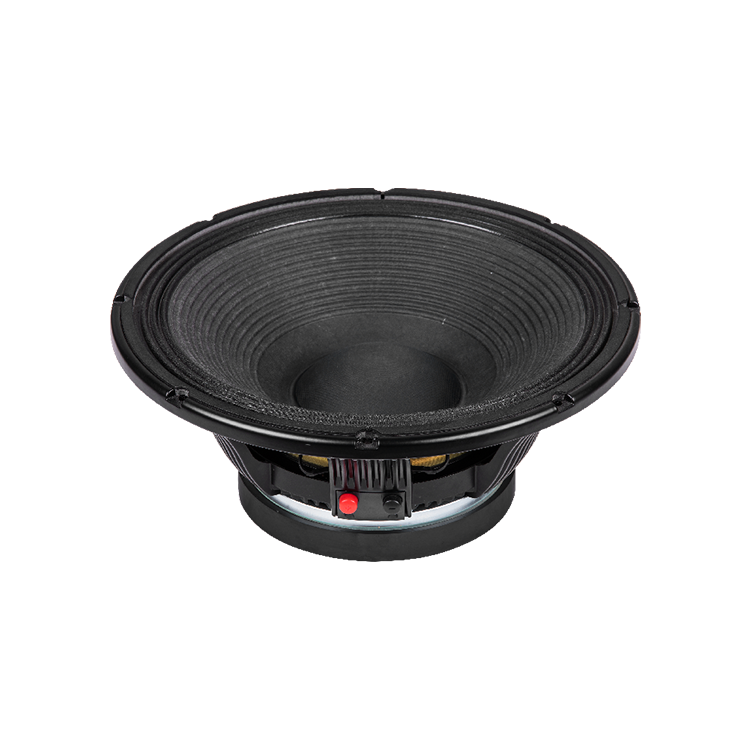

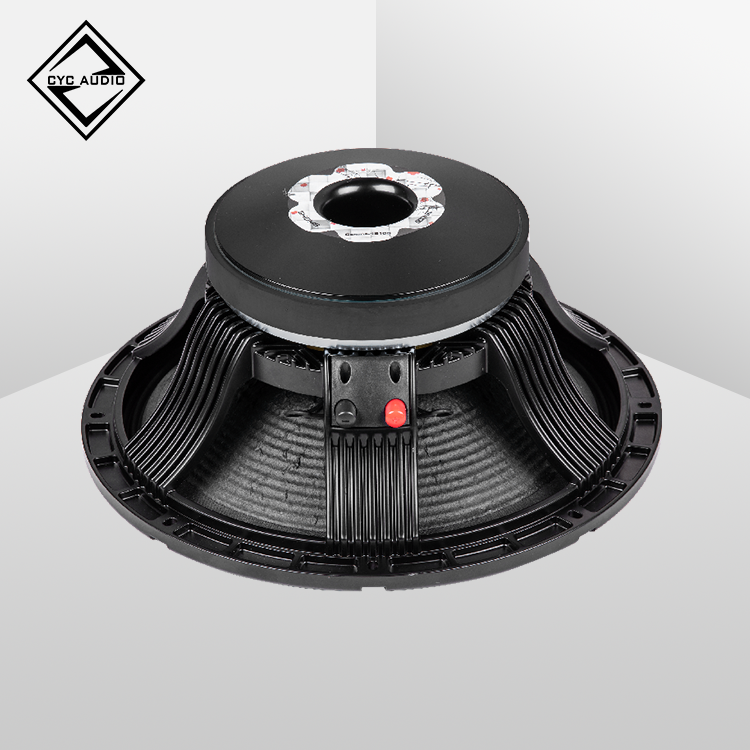

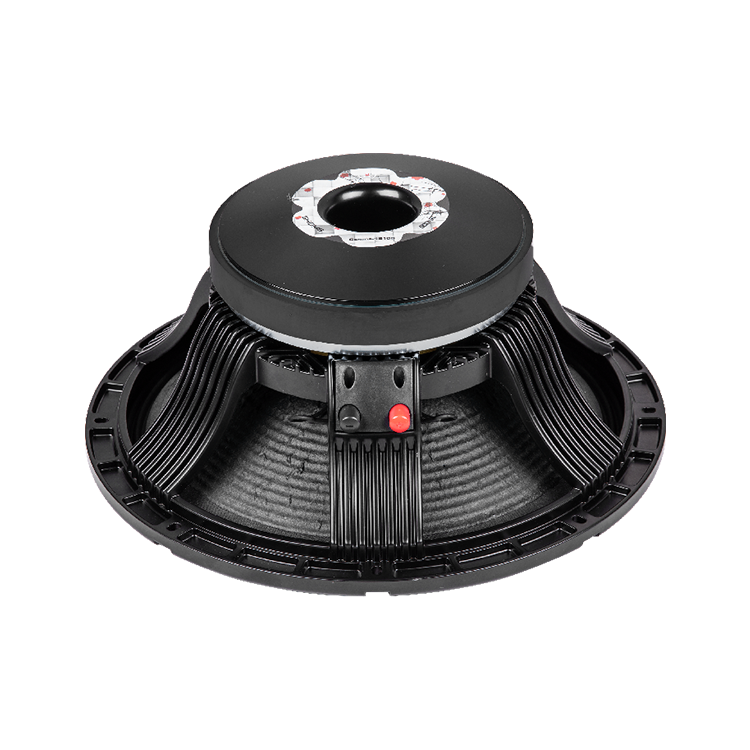

W-15-392A-8-100
Description
MECHANICAL SPECIFICATIONS
| Overall diameter: | 400.5mm | Depth: | 167mm | |
| Bolt circle diameter: | 378mm | Flange and Gasket: | 18mm | |
| Baffle cutout diameter: | 360mm | Net weight: | 12.3kg | |
| Shipping box (single carton box): | 430x430x250mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter: | 15Inch | Voice coil material: | Inside/Outside 1 layercu | |
| Nominal impedance: | 8Ω | Former material: | GF | |
| DC resistance: | 4.9Ω | Winding depth : | 24mm | |
| Nominal power handling: | 800W | T yoke: | 22mm | |
| Continuous power handling: | 1600W | Plate: | 12mm | |
| Sensitivity (1W/1m): | 98± 2dB | Magnet: | 220*110*25(125OZ) | |
| Frequency range (-10dB max): | 45-2000Hz | Basket: | Cast aluminium | |
| Voice coil diameter: | 100mm | Midrange & Tweeter: |
THIELE & SMALL PARAMETERS
| Fo: | 45Hz | Cms: | 94.09u M/N | Qms： | 6.75 | No： | 0.0284 | |||
| Revc: | 4.9Ω | Mmd: | 116.65m Kg | Qes: | 0.33 | Xmax： | ±6mm | |||
| Sd: | 89.7m㎡ | Mms: | 132.11g | Qts: | 0.32 | |||||
| Vas: | 107.5L | Bl: | 23.3N/A | Levc: | 1.11m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
