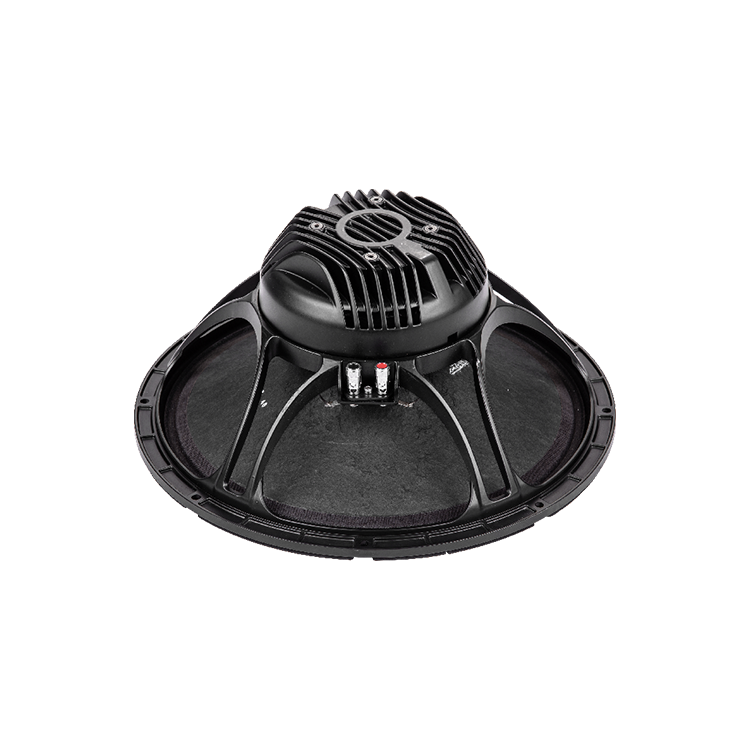

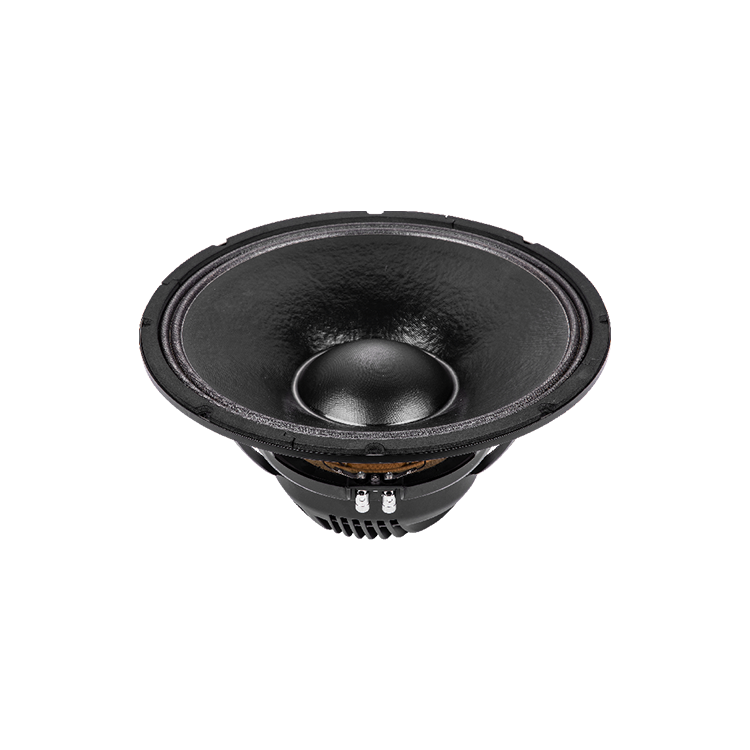

W-15-363A-8-75
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 388mm | Depth： | 167mm | |
| Bolt circle diameter： | 373mm | Flange and Gasket： | 12mm | |
| Baffle cutout diameter： | 354mm | Net weight： | 4.6kg | |
| Shipping box (single carton box)： | 435x435x255mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter： | 15Inch | Voice coil material： | Outside 1 LayerALR | |
| Nominal impedance： | 8Ω | Former material： | TIL | |
| DC resistance： | 5.6Ω | Winding depth： | 20mm | |
| Nominal power handling ： | 350W | T yoke： | 25mm | |
| 700W | Plate： | 10mm | ||
| Sensitivity (1W/1m) ： | 98.5± 2dB | Magnet： | NDFEBmm | |
| Frequency range (-10dB max)： | 46-2800Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 75.5mm |
THIELE & SMALL PARAMETERS
| Fo： | 46Hz | Cms： | 126.7u M/N | Qms： | 6.8 | No： | 0.0262 | |||
| Revc： | 5.6Ω | Mmd： | 75.2m Kg | Qes： | 0.54 | Xmax： | ±5mm | |||
| Sd： | 89.1m㎡ | Mms： | 90.6g | Qts： | 0.5 | |||||
| Vas： | 143.2L | Bl： | 16.8N/A | Levc： | 338.6m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
