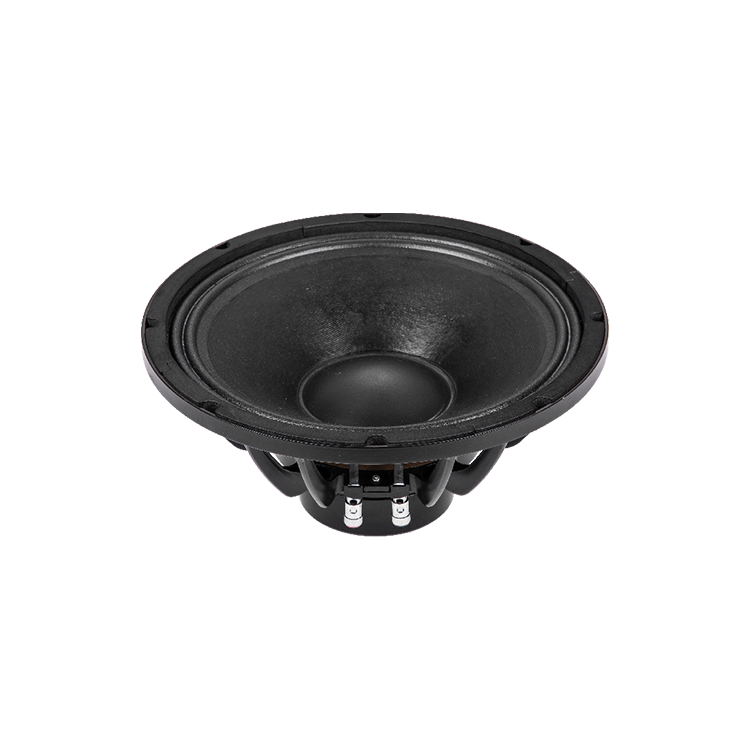

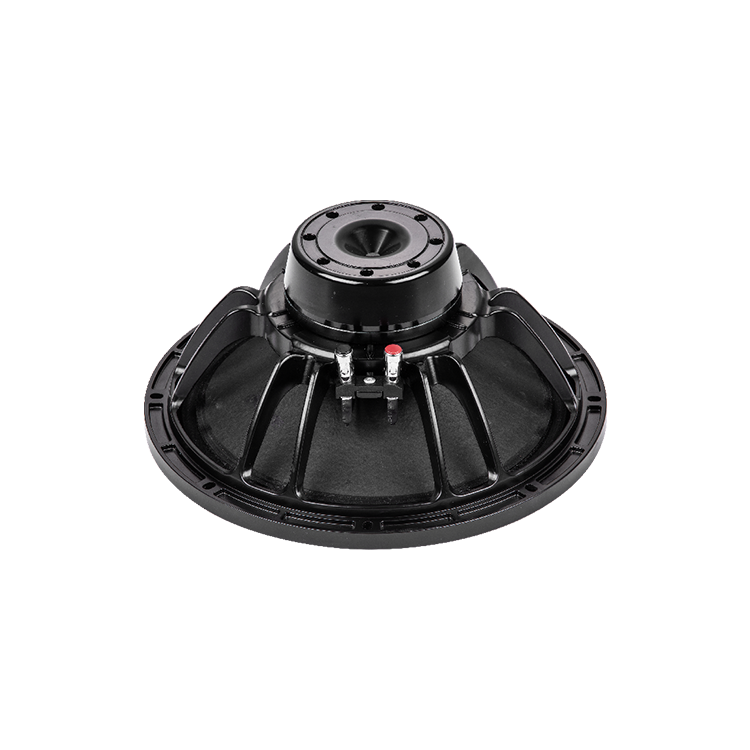

W-12-214A-8-75
Description
MECHANICAL SPECIFICATIONS
| Overall diameter： | 315mm | Depth： | 130mm | |
| Bolt circle diameter： | 298mm | Flange and Gasket： | 14mm | |
| Baffle cutout diameter： | 283mm | Net weight： | 5kg | |
| Shipping box (single carton box)： | 340x340x165mm |
ELECTRICAL SPECIFICATIONS
| Nominal diameter ： | 12inch | Voice coil material： | Inside/Outside 1 layercu | |
| Nominal impedance： | 8Ω | Former material： | TIL | |
| DC resistance： | 5Ω | Winding depth ： | 16mm | |
| Nominal power handling ： | 350W | T yoke： | 12mm | |
| 700W | Plate ： | 10mm | ||
| Sensitivity (1W/1m)： | 98± 2dB | Magnet： | NDFEB oz | |
| Frequency range (-10dB max)： | 50-5000Hz | Basket： | Cast aluminium | |
| Voice coil diameter： | 75.5mm |
THIELE & SMALL PARAMETERS
| Fo： | 51.8Hz | Cms： | 229.89u M/N | Qms： | 2.46 | No： | 0.035 | |||
| Revc： | 5.6Ω | Mmd： | 33.98m Kg | Qes： | 0.34 | Xmax： | ±3.5mm | |||
| Sd： | 53.09m㎡ | Mms： | 41.02g | Qts： | 0.31 | |||||
| Vas： | 92.02L | Bl： | 14.65N/A | Levc： | 691.2m H |
(1) 24 hours in free air according to EIA-426B
(2) 1 inch=25.4mm (3)Xmax=(Winding depth -Plate)/2
